Vector movement game units

Posted in Intercept, Other vector movemet systems, Rules, Science, Traveller, Vector movement on July 16, 2019 by Anders Backman

When you create your own vector movement system, as I am sure everyone does, you need to determine what map scale, turn length and acceleration units are. There is an obvious formula from school that most seem to use and but will argue for why this is wrong and why one should instead use another formula, also from school.

Plotting example

Mapscale

Typically one decide on the map scale first (how large will the hexes, squares, inches or centimeters be?). Deciding on scale is mainly about what you want in your maps, do you want planets to be one unit or less in scale? Do want to show Earth and the moon on the same map? Do you want to fit the inner solar system on your map, like Triplanetary? And so on.

Some examples:

  • Intercept 10 000 km per square, 15 minute turns, 1G per square.
  • Intercept large scale 100 000 km per square, 60 minute turns, 1G per square.
  • Traveller LBB 1000 km per inch, 5 minute turns, 1G per inch.
  • Mayday by GDW 300 000 km per hex, 100 minute turns, 1G per hex.
  • Triplanetary ~10 million km per hex, 1 day per turn, ? G per hex.

Intercept let you play using two different scales and switch back and forth as you like, there’s even a smaller scale in the works if I can iron out the problems with planets taking up large parts of the map, that scale will be 1 000 km, 4 minute turns and 1G per square as usual.

We will later calculate what acceleration Triplanetary is likely using based on the distance and time scales and formulas learned.

Formulas

High school math teaches us two formulas for determining distance traveled, one for when applying constant acceleration from a standstill and another when having constant speed.

The two formulas are:

Formula one and two

Notice how formula 2b is the same as formula 1 but without the 1/2 multiplier. Distances traveled become twice as far in formula 2 so one of them must be wrong, right?

Not so fast! The formula from high school actually looks like this:

Formuila one with prior speed

Formula (3) also take the velocity from the previous turn into account (the v0 term). As v equals a multiplied by t we get our beloved formula (2b) as the first term, or something similar at least.Why is the first term twice as big as the second term? Well, the the first term assumes the speed is constant through the time segment t while the second term treat is as increasing, the distance traveled can be seen as areas in graphs with speed plotted versus time, like this:

Formula and area

If we use formula (3) to determine total distance traveled while t keeping t as the turn length and v as v (n-1) where n is the number of turns we’ll see that as the number of turns increase the grey area will more and more resemble a rectangle (the triangle of the last turn will contribute less and less of a fraction of distance traveled).

Formula graph

The grey area is the distance traveled. If we call one rectangle as 1.0 and one triangle as 0.5 we get the following distances:

  • Turn 1: 1 triangle plus 0 rectangles = 0.5
  • Turn 2: 2 triangles plus 1 rectangle = 2.0
  • Turn 3: 3 triangles plus 3 rectangles = 4.5
  • Turn 4: 4 triangles plus 6 rectangles = 8.0

and so forth…

You see that as the number of turns increases the number of rectangles increases faster than the number of triangles. So, as the number of turns increase the the number of rectangles will outstrip the number of triangles.

In the vector movement systems of Triplanetary, Mayday, Traveller, Intercept etc we use a vector that both represent velocity and acceleration however. So we either decide that one unit length should be correct for acceleration from a standstill but wrong for drifting or accelerating with a prior velocity (1) or we decide that one unit length should be correct for drifting and approach correct when handling prior velocity (2).

Too much theoretical bullshit you say? OK, let’s do a practical example.

Let’s travel from a standstill to the moon as see which of formula (1) or (2) most closely fit (3). We ignore braking at the moon just go to the moon as fast as possible. The average distance between the earth and the moon is 380 000 km so let’s go with that.

Units for formula (1)

  • A = 10 m/s^2
  • T = 1000 s
  • S = 5000 km

Distance earth – moon will be 76 squares.

Traveling 76 squares with 1 unit acceleration will be

1+2+3+4+5+6+7+8+9+10+11+12 = 78 units after 12 turns (12 000 s) = 3 h 20 m
(We overshot the moon by 2 squares but this is the closest we could get)

Units for formula (2)

  • A = 10 m/s^2
  • T = 1000 s
  • S = 5000 km

Distance earth – moon will be 38 squares.

1+2+3+4+5+6+7+8+9+10 = 46 units after 10 turns (10 000 s) = 2 h 45 m
(We overshot the moon by 8 squares but this is the closest we could get)

The correct value using formula (3) and setting v0 to zero is (8 718 s) = 2 h 25 m



Sorry about the long winded explanation but for some reason most vector systems get this wrong. Doesn’t matter when you play of course but say you want to travel from earth to the moon using actual mapboard movement you’d find that the travel time would not match the calculated value.

Apollo 11 50 years anniversary July 16 1969

Yes, 50 years ago today a couple of Americans started their travel from earth to the moon , certainly not under constant 1 G acceleration and they made damned sure their velocity was as close to zero as possible before they hit the moon. Apollo 11 did the trip in about half a week.

Apollo_11_Flight



Traveller day

Posted in Boardgames, Computer games, Elite Dangerous, Films and TV, Other vector movemet systems, Traveller, Vector movement on May 1, 2019 by Anders Backman

Mayday

Today is Traveller day.
Just read what’s written on the box and you’ll get it.

Traveller was the first science fiction rpg ever published, it came out the same year as Star Wars but before the movie was released, a happy coincidence. Traveller was a strong influence for the Elite computers games as well as the Firefly and Expanse TV series, Traveller has also influenced Intercept which of course is eminently usable as a space combat system for the Traveller rpg.

Oh, and Traveller used vector movement for its starships instead of some lame-ass Trek thing…

Marc Miller, the creator of the game just started a Kickstarter for his new edition of Traveller today:
https://www.kickstarter.com/projects/traveller5/traveller-fifth-edition/description

Version 3.4.3 update

Posted in Boardgames, Design system, Intercept, Other vector movemet systems, Traveller on December 11, 2016 by Mr Backman

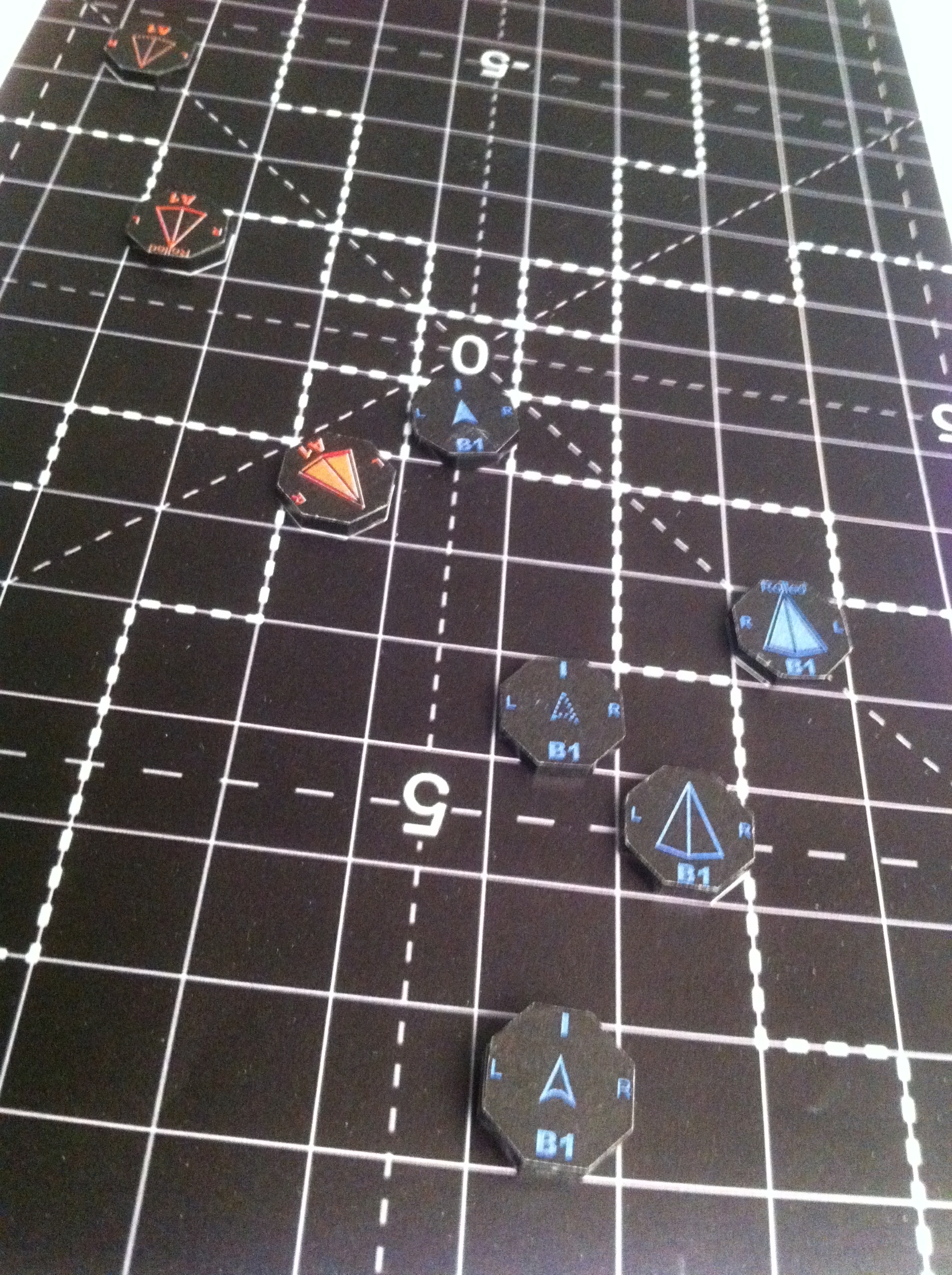

Board and counters

Vesta acquisition. In response to the verbal from the autopilot, Dieter Ulans flipped his datavisor in front of his eyes and prepared to take direct command of the massive ring of lasers and reaction engines that was Hercules. He hit the juicer button and felt the rush as the drugs began to wash into his veins. “Com’monn jockey juice!” he whispered and then began to croon: “All my thoughts of you, you, you — all that I’ve sought is you, you, you.” The tiny green symbols on the datavisor began to zip past his eyes at an increasing speed.

From the rulebook to Battlefleet Mars 1977 – Essentially the Expanse setting but 39 years before it aired.

Rules

There are lots of changes all over the rules, too many to mention. Sections have also been rewritten, gotten new or updated illustrations or have been rearranged, to clarify and simplify without actually changing too much.

As always, read the front page to get a feel how the game works. Then, read pages 2-3 which cover tasks and initiative, very important to grasp. From then on, simply start playing a turn and read as the turn progresses, the rules are written in turn sequence order.

You can download it all here, as usual, with the updated designs, maps etc.

Tasks

The task system has gotten a facelift and a slight change to what Miss margins give what result. All tasks are now highlighted in red in the table columns to make them easier to find, they are also duplicated on the four reference pages at the back. All degrees of success or failure are now three points wide:

  • Very Good You rolled at least 6 points above the target number.
  • Good You rolled 3-5 above the target number
  • Fair You rolled 0-2 above the target number
  • Miss You missed by 1-3
  • Bad You missed by 4-6
  • Very Bad You missed by 6 or more

Movement

The movement rules are basically the same as before but rewritten and clarified with step by step illustrations on how movement is performed. The section on plotting has also been clarified and with a detailed example illustration showing all aspects of plotting.

fractional-thrust

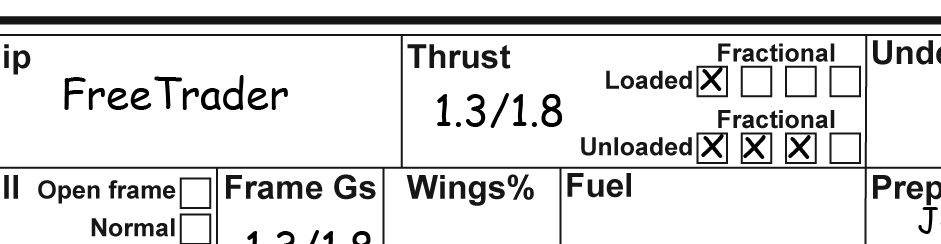

Fractional thrust Ships don’t come with Thrust in increments of whole Gs, fractions in increments of 0.25 Gs allow the ship an extra G on certain turns of every group of four turns. The mapsheet holds helpers for this and there is also check-boxes for fractional thrust, loaded and unloaded, on the ship Datacard too. All ready-made designs have these already filled in for you. A ship with 1.25 Gs of thrust would thrust 2 G on turn 1 and 1 G on turns 2-4, 2.5 Gs of thrust would thrust 3 G on turn 1 and 3 and 2 G on turns 2 and 4. A ship with 0.75 Gs of thrust would thrust 1 G on turns 1, 2 and 3 but cannot thrust on turn 4 of every group of 4 turns.

Free traderDatacard fractional thrusts

As damage to Thrust and Power affected how many Gs a ship could thrust this has been changed too, so you don’t have to recalculate what fractions to use as you get damage. Now Thrust and Power damage affects how many turns in a row you are allowed to thrust. All, 2 turns , 1 turn or not at all for No damage, Light, Severe or Critical damage. Plotting rules teach you to draw a circle around your ship whenever it drifts and thus reset the clock on thrust.

Sensors

The fundamentals of the sensor rules remain the same, just clarifications and better examples. The only changes I can think of is that you no longer can use your Visual/IR and Radar sensors when popped in. On the other hand, ships may now pop in at any time during a turn as long as they haven’t used their weapons yet. Ships lose any tracked enemies and any launched missiles when popping in but as you know the vector and position on your targets when they were tracked reacquiring them should be fairly easy.

Oh, one more thing. Intercept now allow 2×2 scans, 2×2 square scans are +2 (+4 for radar), 2×2 boxes are -2 (-4 for radar). I didn’t allow them before because they didn’t have a clear center but showing where your scan is located should pose no problem anyway.

Map coordinate legend

The plotting rules now teached how to refer to boxes and sqaures on the map, using the legends on the map. To efer to the top left box of the map, say “Ay-one”, to refer to the bottom left square of the box where the latrge planet is in say “Dee-six one-five”. Always use column-then-row for the boxes followed by column-then-row for the individual squares.

Combat

The combat section has been rewritten and lots of die modifiers have been removed or baked into other rules. How much a ship thrusts no longer affect how hard they are to hit, we simply give a +2 DM on attacks, and defense when  drifting.

Underpower When a ship didn’t have enough power to use all their weapons when thrusting or drifting we previously used two DMs, peculiarly placed low on the Datacard and was often forgotten (I admit to cobbling it in wherever there was room).

Freetrader underpower ratings

Now, Underpower is one of All+, All, 2 turns, 1 turn, No fire, ships have separate Underpower ratings for Thrusting, Drifting or Jump prepping (more on that in the optional hyperspace rules). When a ship has Severe damage in its power location its Underpower rating is one level worse, All+ becomes All, All becomes 2 turns and so on.

Damage

Damage has changed considerably in this version. Ships now have only one DAB (Damage ABsorption) rating for the entire ship instead of one per location, ARM (for ARMour) is still per location and sometime even have two values, popped out / popped in for Surface damage, full power / silent running for high powered power locations representing their vulnerable heat radiators.

Penetration and Damage tables

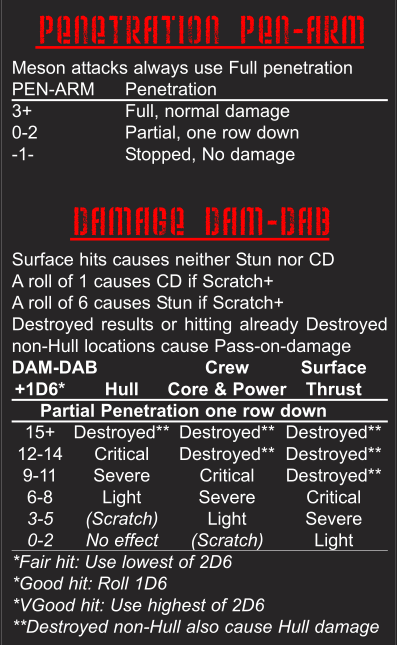

How do we handle different damage at different locations then? We have three separate columns on the damage table, one for Hull, one for Crew, Core and Power and one column for Surface and Thrust.
